hyster

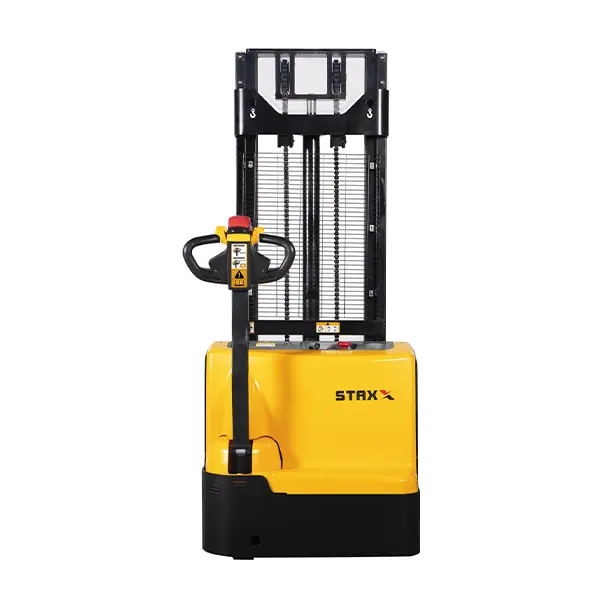

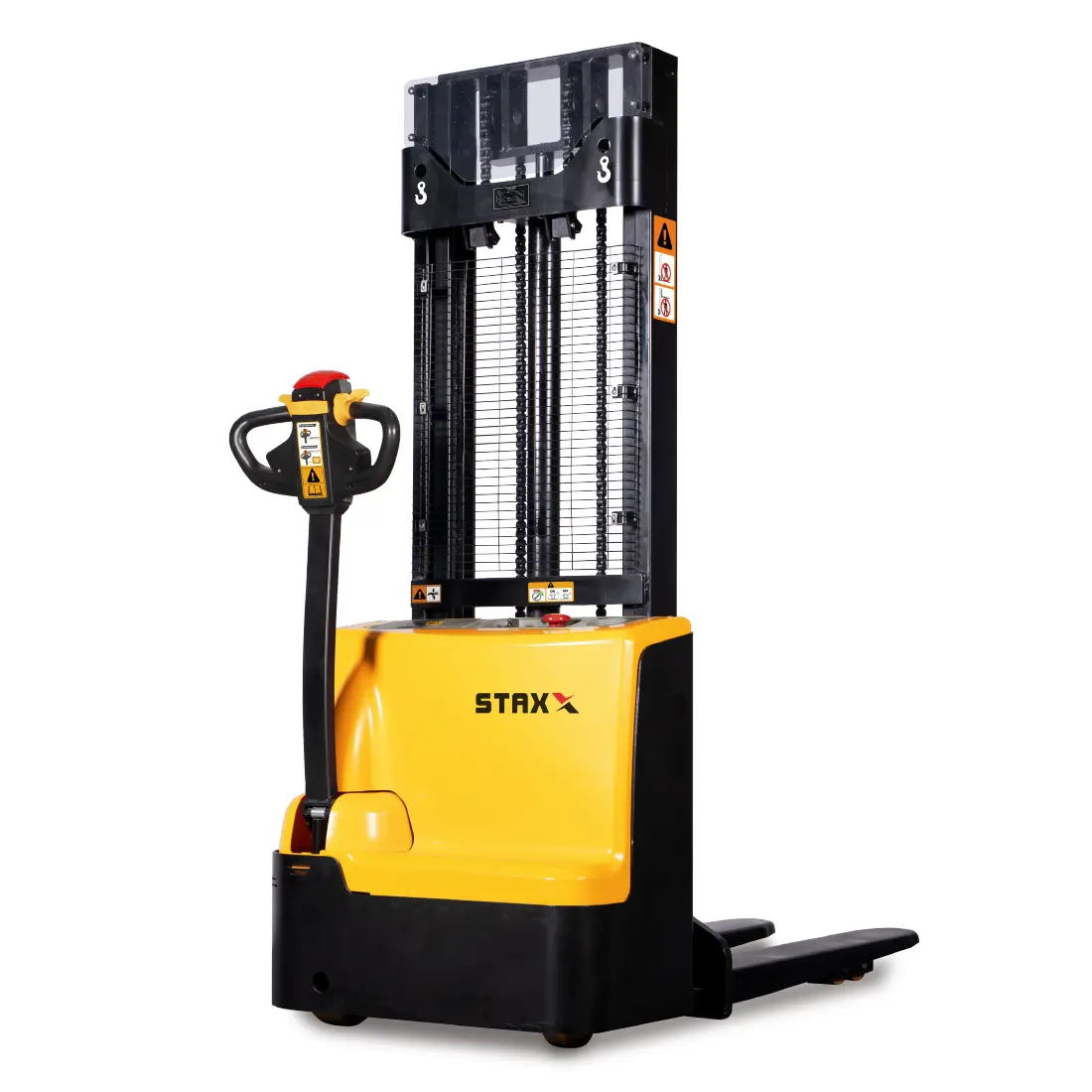

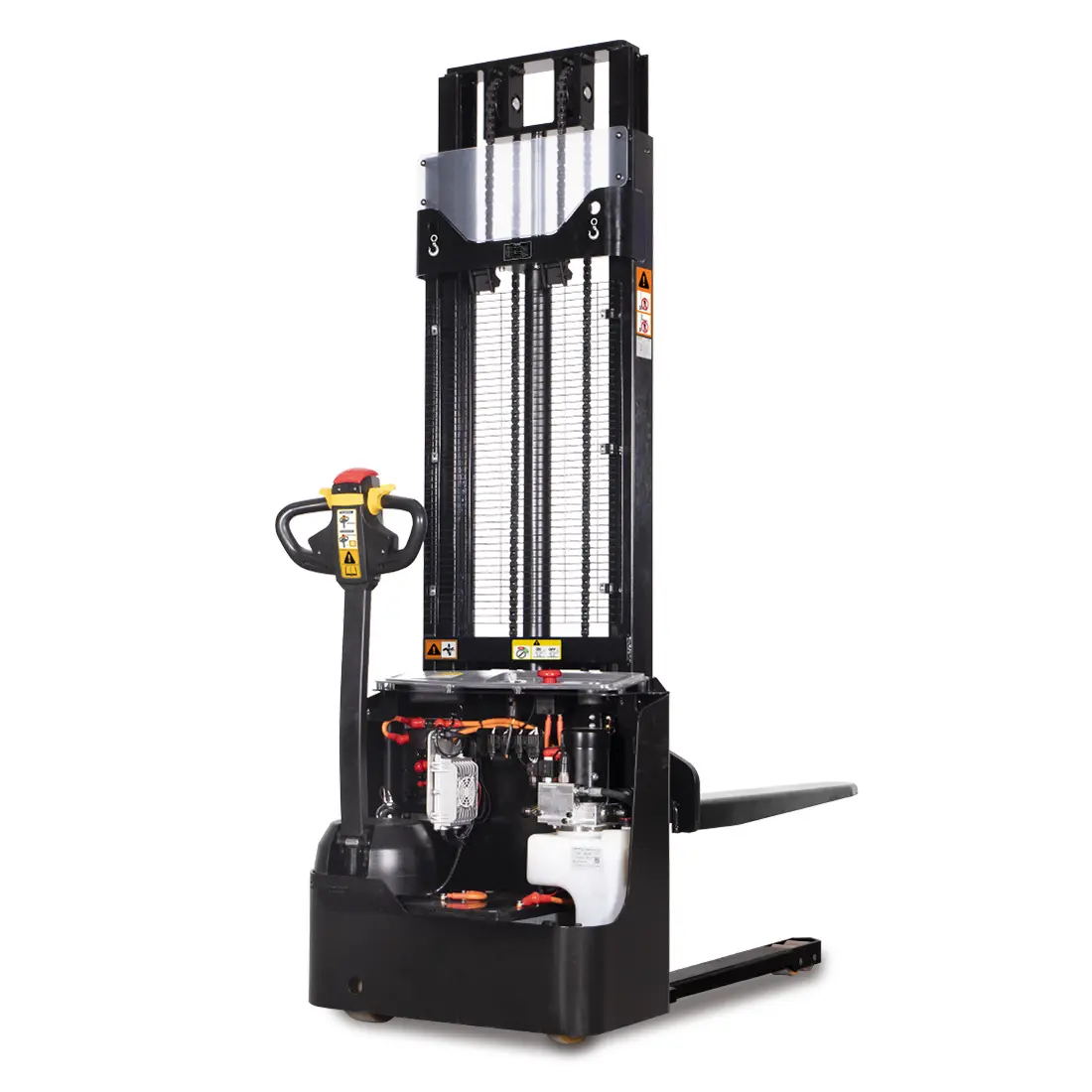

WS15H Fork Over Stacker
WS15H Fork Over Stacker
WS15H Fork Over Stacker
WS15H Fork Over Stacker

WS15H WS15H Fork Over Stacker

Comfortable and efficient thanks to STAXX patented intelligent handle and control system, ideal for replacing manual & semi-electric stackers, for light use in narrow warehouse environments with efficient and easy pallet stacking.

  • MODEL

    WS15H

  • CAPACITY

    1500kg

  • PORT OF LOADIN

    Ningbo, China

  • CERTIFICATION

    CE certificate

SPECIAL FEATURES

    • ■ VARIABLE SPEED CONTROL ON LIFTING & LOWERING
    • ■ INTELLIGENT & EFFICIENT
    • ■ RUGGED & DURABLE
    • ■ EASY & COMFORTABLE
INQUIRE ONLINE
  • wsidh (4)9gj

    • Precise Control

      The proportional lowering brings high efficiency for exact pallet placement and more precise control when compared to the normal fixed speed of lifting & lowering.
      Variable speed control by proportional control knob, keeps lifting and lowering smooth, stable, safe and engergy saving.
    • Proportional lifting & lowering
      The variable speed control ensures the stacker goes up and down smoothly, inimizing the mechanical shock and vibration, ensuring fragile loads are gently placed on racking or the floor, and reducing the impact of noise and vibration on operators.
    • Lowering buffering
      Automatic lowering speed descent with soft buffering when the fork height is lowered to around 10cm from the ground, effectively protects the safety of the cargo, low noise and small vibration.
    • High efficiency
      The variable speed control brings accurate response for adjusting the lifting & lowering speed according to the actual situation, the operator can easily complete the task and improve the working efficiency.

    Intelligent & Efficient

    Staxx patented multifunctional intelligent tiller handle is unique design for quick fault diagnosis, enabling an easier service, shorter service time and lowered labor costs.

    Multifunctional intelligent tiller handle

    ico-(1)1mg
    Recharging Alert
    ico (2)mem
    Fault code display
    ico (3)bsh
    Battery power
    ico (4)a3e
    Lifting & Lowering
    ico (5)wno
    Forward and backward control knob
    ico (6)znx
    Emergency reverse switch
    ico (7)orz
    Horn
    1111if9

    Easy Maintenance

    Operation status & fault diagnosis are integrated onto the tiller handle display for easy troubleshooting.

    wsidh (15)ihuwsidh (14)nft

    Operator Preferred

    wsidh (10)45w

    Turtle Speed

    Enable operator to choose different speed modes based on their experience and the specific work environment.

    223w5v

    Up-Right Drive

    Easily maneuvered with the handle in the vertical position by pressing the turtle-speed button.

    wsidh (9)ebt

    Engineering Mode

    When truck is down, release the brake to move the unit manually.

    89b6c0f5-1097-469e-ba82-0e3f6adca1c3g8j

    • Rugged & Durable

      Due to a high-strength frame and mast design and solid materials used, the deformation of the frame, mast, and forks is small.
    • longer service life
      Mast: Standard C+H channel steel
      Frame: Steel plate thickness of 5mm
      Frame bottom plate: 16mm flat iron on both sides of fork
    • High-strength forks
      The forks are formed in one piece with a thickness of 8mm steel. High strength and small deformation even under heavy loads.
    • Double-chain design
      Compared with single-chain design, it has higher strength, safer and more stable.

    EASY & COMFORTABLE

    wsidh (5)jmp

    Effortless, easy to operate

    Low-mounted longer tiller reduces steering force required.

    wsidh (6)dsl

    Easy to recharge

    Built-in charger and an external charging cable storage box for convenient charging.

    wsidh (3)zv4

    EASY TO RECHARGE

    The steering angle is designed to be above 180 degrees

    Optional

    wsidh (8)4lnWS15H
    • Intelligent control
      Unique in the market and very suitable for sorting operations on trucks.
      With a dedicated remote control device, the operator can control the forks to lift to the appropriate working height and carry out sorting operations, thus avoiding the need to use the handle buttons and bend over to pick up goods, improving operational efficiency and comfort.
    • 卖点6-A
    • With the remote control device, you can easily set the speed suitable for the work, from level 1 speed to level 5 speed.
      Such speed transitions allow you to move the truck with controlled operation at ease.
    ■ Reversing buzzer
    ■ 24V 60Ah(100Ah) LiFePO4
    ■ 24V/30A Charger

        Lithium Battery Charger
        Charging time: 4 hours
